Description
LOAD CENTER QO MLO 240V 200A 3PH 18SP
Product Overview

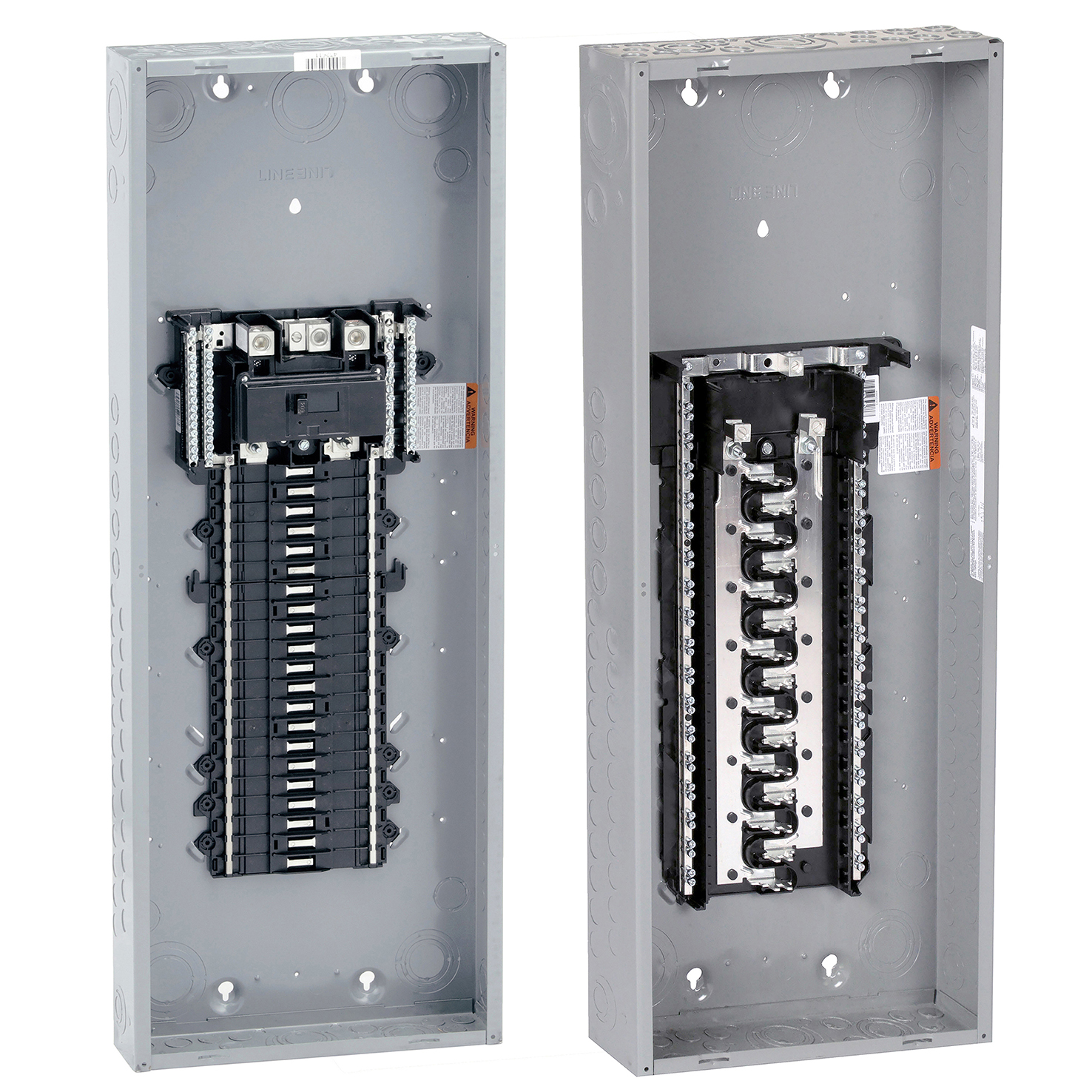

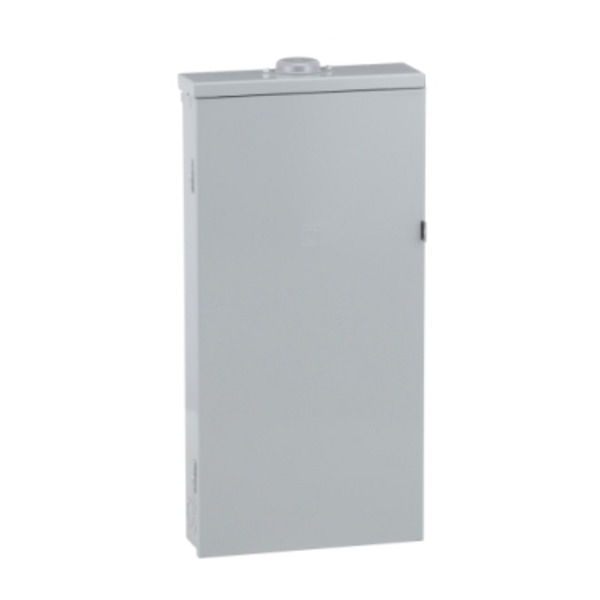

QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 3 phase load center has 18 spaces and 18 circuits. This system provides 200A fixed main lugs in a NEMA 3R enclosure. It also includes a ground bar, and is UL rated.
Specifications
| Bus Type | Copper Bus |
| Main Device | Main Lug |
| Current, Rating | 200 A |
| Number of Circuits | 18 Circuit |
| Number of Spaces | 18 Spaces |
| Indoor|Outdoor | Indoor |
| Number of Wires | 4 Wire |
| Voltage, Rating | 120/240 VAC |
| Enclosure Rating | NEMA 1 |
| Phase | 3 Phase |
| Mounting Type | Surface Mount |
| ECCN | EAR99 |
| EAN | 0785901295457 |
| Harmonized Code | 8538100000 |
| Weight | 31.88 Lbs. |
| Approvals | UL |
This is a custom-built panel manufactured to order. Please allow approximately 30 days for production and delivery after your order is placed, thank you.
this item qualifies for free installation, please send drawings to etsrangesolutions@gmail.com
Part# Sqd-200a-240v
