Description
This transformer is designed to run equipment such as panels, lighting, CNC machines, printing equipment, fabrication tools and other business machines.
Transformer Specifications
- 60 Hz Frequency
- 150°C Temperature Rise
- Primary Adjustment Taps 2 above, 2 below in 2.5% increments
- High Efficiency Design
- Silicon Steel Core
- 220°C Insulation Class

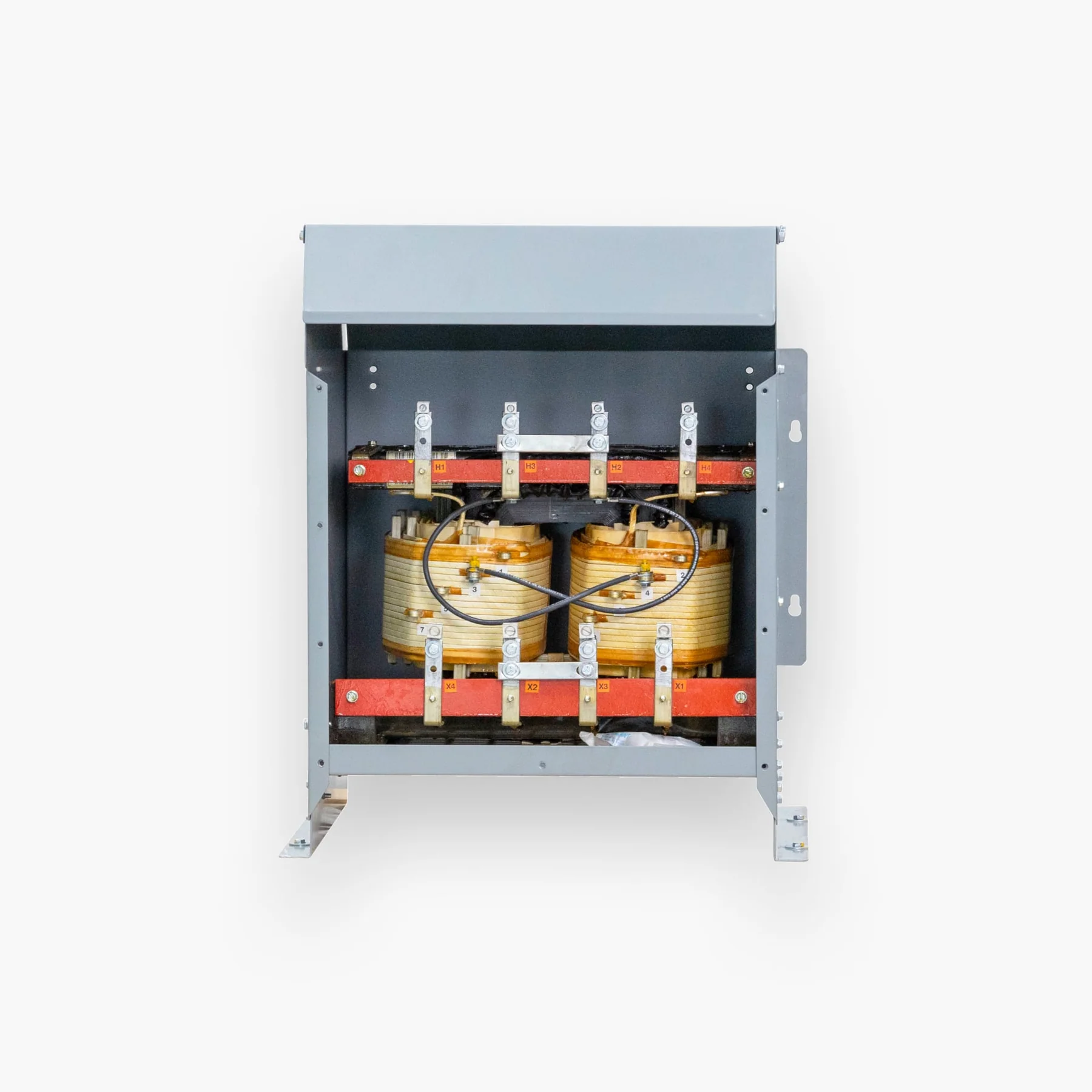

Transformer may appear different than pictured.
| kVA | Amps at 208V | Amps at 240V | Amps at 120V |
| 10 | 48 | 42 | 83 |
| 15 | 72 | 63 | 125 |
| 25 | 120 | 104 | 208 |
| 37.5 | 180 | 156 | 313 |
| 50 | 240 | 208 | 417 |
| 75 | 361 | 313 | 625 |
| 100 | 481 | 417 | 833 |
